Product Description:

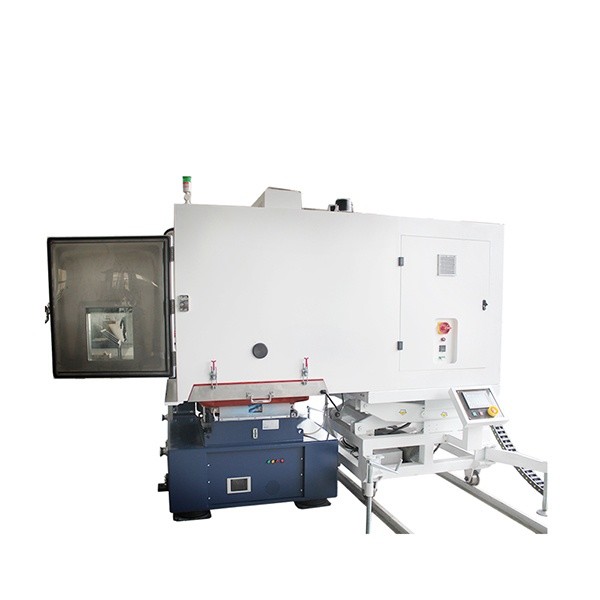

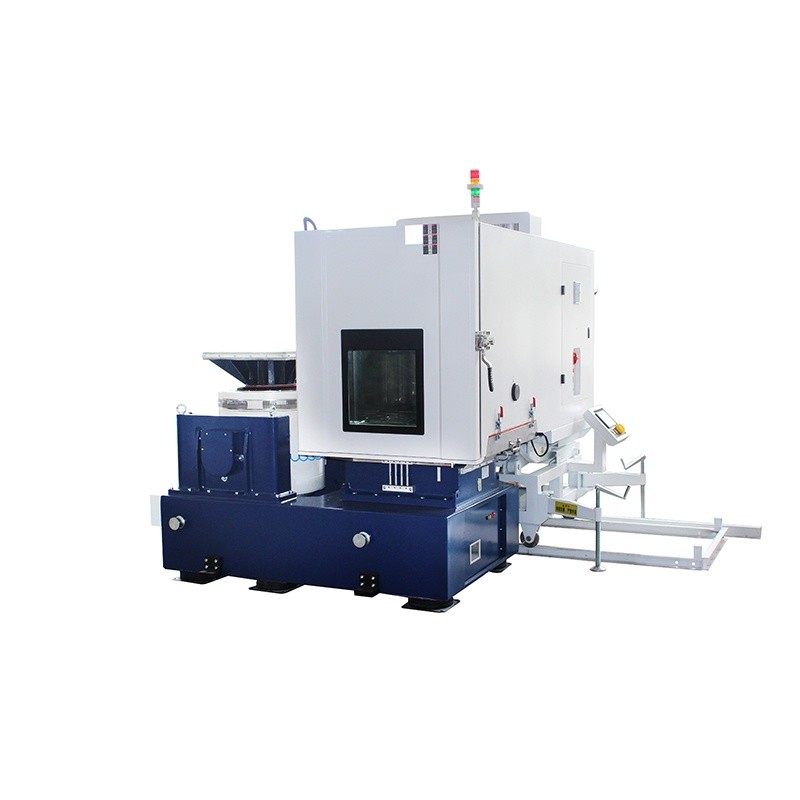

In the dynamic landscape of product development and quality assurance, the need for comprehensive testing solutions that can replicate real - world environmental conditions is more crucial than ever. Our Custom Vibration Test Systems combined with Climatic Chambers offer an all - in - one, highly adaptable solution for businesses across various industries.
Integrated Design for Holistic Testing
By merging vibration test capabilities with climatic chamber functions, our systems enable the simultaneous application of mechanical vibrations and a wide range of environmental factors. This integrated approach provides a more realistic simulation of the conditions products will face during their lifespan, whether in transit, storage, or regular use.
Tailored to Your Specific Needs
Customizable Vibration Parameters
- Our vibration test systems are fully customizable. You can set the vibration frequency anywhere from a low 5Hz to a high 2000Hz, allowing for the accurate replication of vibrations experienced in different scenarios, such as the gentle vibrations during truck transportation or the intense vibrations in industrial machinery.
- The amplitude of vibration can also be precisely adjusted, with a maximum displacement of up to ±25mm (peak - to - peak). This flexibility ensures that your products, no matter how large or small, delicate or robust, are tested under the appropriate vibration stress.
- Multiple vibration modes are available, including sinusoidal, random, and shock vibrations. You can switch between these modes based on your product's testing requirements, providing a comprehensive evaluation of its vibration resistance.
-
Versatile Climatic Conditions
- Temperature Control: The climatic chambers offer an extensive temperature range, from a frigid - 70°C to a sweltering + 180°C. This wide span allows for the simulation of diverse global climates, from the frozen Arctic regions to the scorching deserts. The temperature uniformity within the chamber is maintained at ±1.0°C, ensuring that all test samples are exposed to the same thermal conditions. The temperature deviation is kept to a minimum, at ±0.5°C, guaranteeing highly accurate temperature control for reliable test results.
- Humidity Control: Humidity levels can be adjusted from a dry 10%RH to a humid 98%RH. This is essential for testing products that are sensitive to moisture, such as electronics, pharmaceuticals, and certain types of packaging materials. The humidity control system ensures a uniformity of ±2.5%RH and a deviation of ±3%RH, providing consistent and accurate humidity conditions throughout the test.
-
User - Friendly Operation and Monitoring
Our custom systems come with an intuitive control interface. Operators can easily input and adjust the vibration and climatic parameters. The system also allows for the creation and storage of custom test profiles. These profiles can be recalled and executed with just a few clicks, saving time and ensuring consistency in testing procedures. Additionally, remote monitoring and control capabilities are available. Through a secure network connection, authorized personnel can access the system from anywhere, monitor the progress of tests in real - time, make adjustments if necessary, and receive alerts in case of any anomalies.
Technical Specifications
Shaker Specifications
| Rated Sine/ Random/ Shock Force | 1,100 kgf/1,100 kgf/2.200 kgf | Armature Mass | 11kg |
| Frequency Range | 5-3.000 Hz | Inserts Size (Standard) | M8 |
| Max./Continuous Displacement p-p | 51 mm/ 51 mm | Load Attachment Points (Standard) | 17 |
| Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
| Max.Sine/ Random Acceleration | 100/60g | Mac Vertical Load Support | 300 kg |
| Armature Diameter | 235 mm | Stray field @ 152 mm above table | ≤1mT (10 gauss) |
| Fundamental Resonance frequency | 2,500 Hz (nom.) ± 5% | Dimension LxWxH | 940 mmx715 mmx780 mm |
| Allowable Armature Overturning Moment | 300 Nm | Weight (Uncrated) | 1.000 kg |
Chamber specifications
| Chamber | Dimensions (mm) |
| Capacity | 512L |
| Inner Chamber Dimensions | 800×800×800mm (W width × D depth × H height mm) |
| Temperature Range | -40℃～+150℃ |
| Cooling Rate | +20℃～-40℃ Average throughout the range: 2℃/min |
| Humidity Range | 20%RH～98%RH |
| Overall Dimensions | 1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions |
| Weight | 1500kg |
Applications Across Multiple Industries
Aerospace Industry
Components in aircraft, such as avionics systems, sensors, and mechanical parts, need to function flawlessly in extreme environmental conditions. Our combined test systems subject these components to high - altitude low - temperature conditions while simultaneously applying vibrations to simulate the in - flight environment. This helps in identifying any potential failures early, ensuring the safety and reliability of aircraft.
Automotive Sector
Automotive manufacturers use our systems to test engines, transmissions, and in - car electronics. By simulating the vibrations and temperature - humidity variations experienced during driving on different terrains and in various weather conditions, they can improve the durability and performance of their vehicles. For example, testing car infotainment systems in a combined high - temperature, high - humidity, and vibrating environment can reveal potential issues with display readability or system malfunctions.
Electronics Manufacturing
With the increasing miniaturization of electronics, components are more sensitive to environmental factors. Printed circuit boards, microchips, and consumer electronics like smartphones and laptops are tested in our systems. The ability to simulate the temperature, humidity, and vibration conditions during transportation and daily use helps manufacturers ensure that their products can withstand the rigors of real - world scenarios, reducing product returns and enhancing customer satisfaction.
Defense and Military
Defense equipment must operate reliably in all kinds of harsh environments. Our combined test systems are used to test communication devices, weapons systems, and military vehicles. By subjecting these products to extreme temperatures, high humidity, and intense vibrations, the military can ensure that their equipment will function as expected in the most challenging terrains, from the hot and humid jungles to the cold and dry deserts.
Partner with Us for Your Testing Needs
Every product and every testing requirement is unique. Our team of experts is dedicated to working closely with you to design and develop a custom vibration test system combined with a climatic chamber that meets your exact specifications. Contact us today for a no - obligation consultation. Let us help you take your product testing to the next level and build products that can withstand the test of time and environment.
