AGREE Chambers with Vibration Test System for Transportation Packaging Testing

Model Number : VTS20/TH1000L

Certification : ISO, CE

Place of Origin : China

MOQ : 1

Price : 10000

Payment Terms : T/T

Supply Ability : 20sets/month

Delivery Time : 60 working days

Packaging Details : Soft packaging with sponge bubble wrap + Vacuum moisture-proof packaging + Wooden case packaging

Safety Features : Over-temperature protection, over-current protection, phase sequence protection

Vibration Control : Closed loop control

Internal Volume : 10 liters to 1000 liters

Vibration Frequency Range : 5 Hz to 2000 Hz

Temperature Range : -70°C to +180°C

Power Supply : 220V/380V, 50Hz/60Hz

Material : Stainless steel

Cooling System : Air-cooled or water-cooled

Vibration Modes : Random, Sine, Sine on Random, Random on Random

Display : LCD touch screen

Warranty : 1 year

Humidity Range : 10% to 98% RH

Contact Now

AGREE Chambers with Vibration Test System for Transportation Packaging Testing

Product Description:

Our AGREE Chambers with integrated vibration test systems are specifically designed for rigorous transportation packaging testing. These chambers simulate the combined environmental stresses of temperature, humidity, and vibration, ensuring your packaging can withstand the harshest transit conditions and protect your valuable products.

Key Features:

AGREE Compliance:
- Meets or exceeds industry standards for combined environmental testing.
- Ensures accurate and reliable simulation of real-world transportation conditions.
Integrated Vibration Test System:
- High-performance vibration shakers to simulate various transportation vibration profiles.
- Adjustable frequency, amplitude, and duration to match specific testing requirements.
Precise Temperature and Humidity Control:
- Advanced control systems for stable and accurate environmental conditions.
- Wide temperature and humidity ranges to simulate diverse shipping environments.
Customizable Chamber Sizes:
- Tailored to accommodate various packaging sizes and configurations.
- Ensures efficient testing of diverse product packaging.
Data Acquisition and Analysis:
- Comprehensive data logging and analysis software for detailed test results.
- Real-time monitoring of test parameters for immediate feedback.
User-Friendly Interface:
- Intuitive software and control panels for easy operation and test setup.
- Programmable test sequences for automated testing.
Safety Features:
- Built-in safety mechanisms to protect test specimens and operators.
- Emergency stop functions for immediate shutdown.
Compliance with Industry Standards:
- Meets or exceeds relevant transportation packaging test standards, such as ISTA and ASTM.

Technical Specifications

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m3/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm2
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Applications:

Transportation packaging integrity testing.
Product protection evaluation during transit.
Packaging optimization for various transportation modes.
Quality assurance for packaged goods.
Evaluation of packaging materials.

Benefits:

Reduced product damage during transportation.
Minimized shipping costs and product returns.
Improved customer satisfaction.
Ensured compliance with transportation regulations.
Optimized packaging design.

AGREE Chambers with Vibration Test System for Transportation Packaging Testing

Why Choose Us:

We are a leading provider of advanced environmental testing solutions, specializing in AGREE chambers with integrated vibration test systems for transportation packaging testing. Our expertise and commitment to quality ensure reliable and accurate results.

Contact Us:

Product Tags:

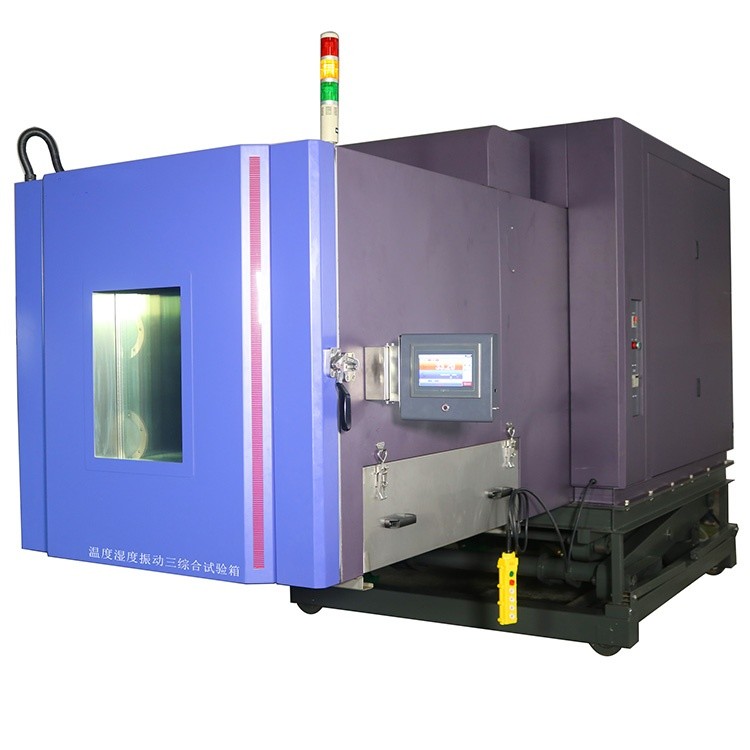

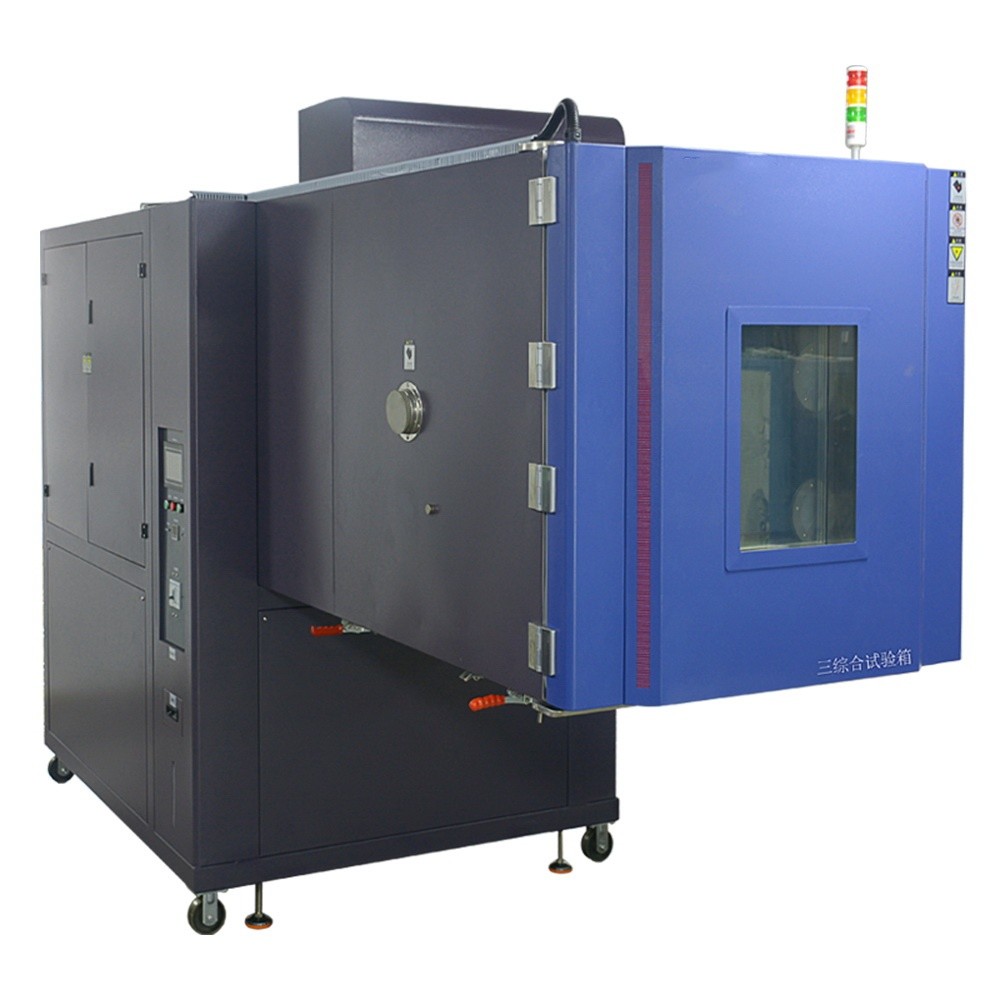

AGREE Chambers with Vibration Test System for Transportation Packaging Testing Images
